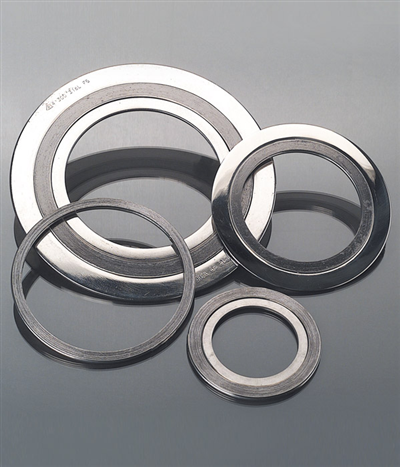

Spiral Wound Gaskets made of Mica filler (with inner ring)

Spiral Wound Gaskets made of Mica filler (with inner ring)

Features1

Spiral Wound Gaskets using mica film as filler material

Features2

Minimizes the deterioration of strength due to heating.

Features3

A gasket with an inner ring is used for a male-female flange. The inner ring not only reinforces the gasket but also decreases the clearance between the pipe’s inner diameter and the gasket, as well as preventing accumulation of fluids and errosion of corner areas.

Features4

Please use a product with inner and outer rings if the pressure rating of the flange is Class 900 (JIS 63K) or greater, or if the nominal diameter of the flange is 650A (26B) or greater.

Inappropriate fluid

Inflammable gas, Poisonous

Application

For H.T.S.（Oxidizer: The mixture of Sodium nitrate, Potassium nitrate, and Sodium nitrite） used as high temperature Heat transfer oil

Standard Flange

For JIS pipe flanges＝10K、16K、20K、30K、40K、63K For JPI and ANSI pipe flanges ＝Classes 150, 300, 400, 600, 900, 1500, 2500 Gaskets complying with other standards such as ASME and MSS are also available.

Non-Standard Flange

The sign “( )” shows thickness classifications.
